Description:
Brand | Canon |
Model Name | EOS M5 |
Form Factor | DSLR |
Effective Still Resolution | 24.2 MP |
Special Feature | Locking |
Optical Zoom | 1 x |
Color | Black |
Connectivity Technology | USB |
Screen Size | 3.2 Inches |
Photo Sensor Size | APS-C |
Specification:

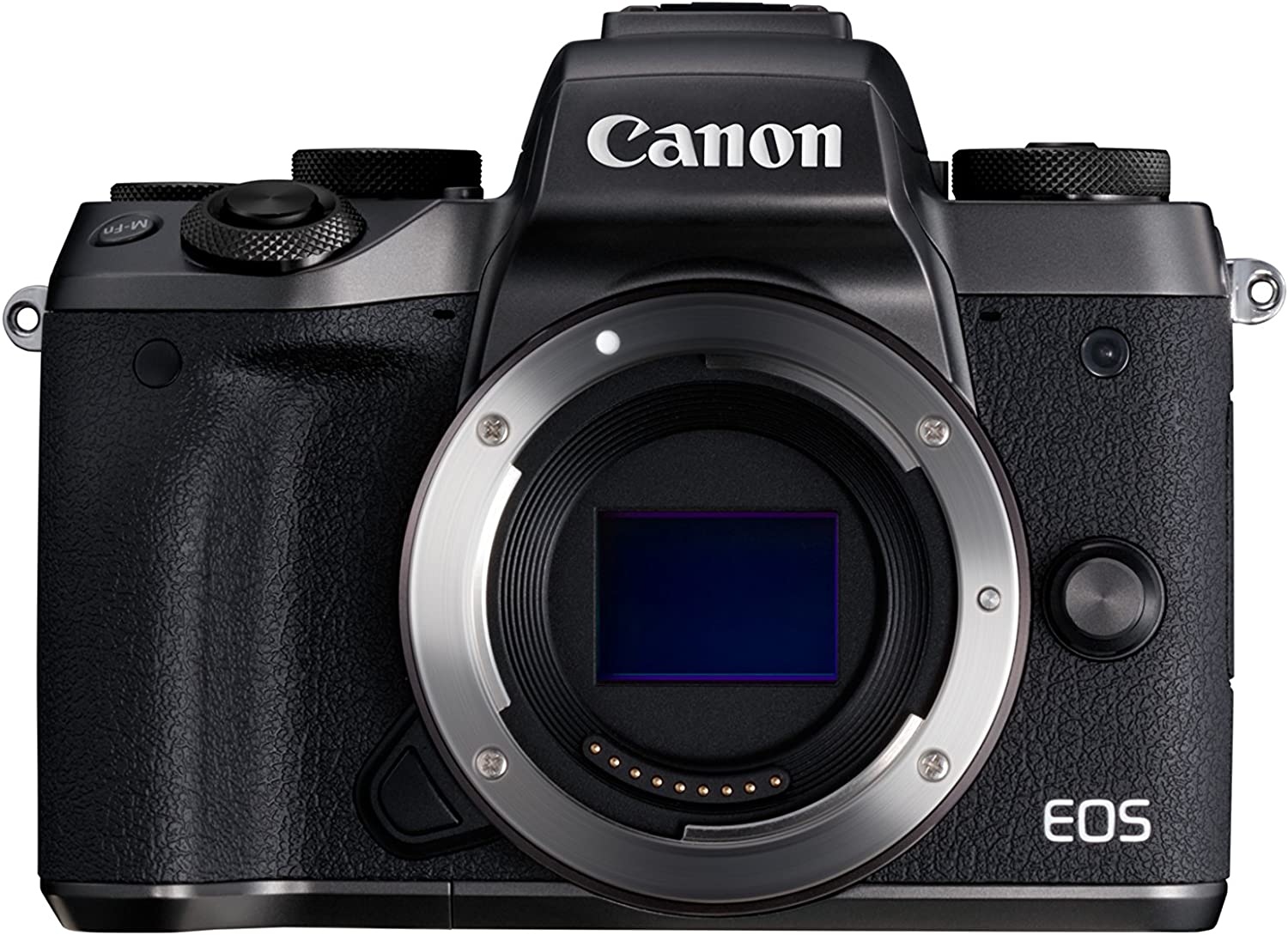

Canon EOS M5 Mirrorless DSLR Camera - Body
Brand: Canon
Model: EOS M5
IMAGE SENSOR
Type: 22.3 x 14.9mm CMOS
Effective Pixels: Approx. 24.2 megapixels
Total Pixels: Approx. 25.8 megapixels
Aspect Ratio: 3:2
Low-Pass Filter: Built-in/Fixed
Sensor Cleaning: EOS integrated cleaning system
Colour Filter Type: Primary Colour
Image Processor: DIGIC 7
FOCUSING:
Type: Dual Pixel CMOS AF System. Phase detection pixels built onto imaging sensor | AF System/ Points: Maximum 49 AF points (Fixed location on 7x7 grid) via camera automatic selection | Freely position 1 AF point/ 1 AF Zone (9 points, 3x3 grid) via manual selection
AF working range: EV -1 - 18 (at 23 °C, ISO 100, with EF-M 22mm f/2 STM)
AF Modes: One-Shot AF and Servo AF
Selected AF point display: Indicated on LCD monitor/ EVF
EXPOSURE CONTROL:
Metering Range: EV 1-20 (at 23 °C, ISO 100)
Exposure Compensation: +/-3 EV in 1/3 stop increments
AEB: 3 shots, +/- 2 EV, 1/3-stop increments (can be used together with manual Exposure Compensation)
ISO Sensitivity: ISO AUTO (100 - 25600), 100 - 25600 in 1/3 stop increments4
Movie: ISO AUTO (100-6400), 100-6400 in 1/3-stop increments
SHUTTER:
Type: Electronically controlled focal-place shutter
Speed: 30-1/4000 sec (1/3 stop increments), Bulb (Total shutter speed range. Available range varies by shooting mode)
WHITE BALANCE:
Type: Auto white balance with the imaging sensor
Settings: AWB, Daylight, Shade, Cloudy, Tungsten light, White
Fluorescent light, Flash, Custom, Colour Temperature (100 Kelvin increments)
VIEWFINDER:
Type: 0.39-type OLED Electronic Viewfinder, Approx. 2,360,000 dot
Coverage (Vertical/Horizontal): Approx. 100%
Eyepoint: Approx. 22 mm
Dioptre Correction: Yes
Depth of field preview
Yes, via customisable buttons
LCD MONITOR:
Type: 8.0 cm (3.2”) ClearView II Touchscreen LCD (TFT). 3:2 aspect ratio. Approx. 1,620,000 dots. Electrostatic capacitive type. Tiltable 85 degrees up and 180 degrees down.
Coverage: Approx. 100%
Brightness Adjustment: Adjustable to one of five levels
